Multi-Coolant Baffles
Flangeless Baffles

Flangeless baffles are made to be sandwiched between two other components which have flanges. Often they are positioned between an angle valve and a diffusion pump.

Multi-Coolant Baffle, Ring Style, Copper Louvers, 2 Baffles

Features:

  • Body construction: 304 stainless steel with copper chevrons
  • Surface: glass bead-blast finish exterior and interior
  • Opening sizes: 6.0 - 35 inches and larger per customer request
  • Viton o-rings seals
  • Leak rate: <1.0x10-9 std cc/sec He, vacuum rating: 1x10-8 Torr (1.3x10-7 mbar)
  • O-ring groove on one side.

    • Technical Data

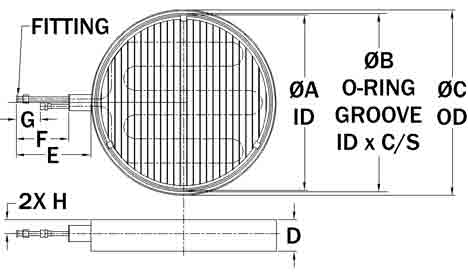

Flangeless Type Multi-coolant Baffle Drawing

Multi-Coolant Baffle - Ringless Type

Data Sheet

Ring Type Baffle Dimensions - Inches (mm) Apx
Model Opening
ID  A		 O-ring Grove
ID   B x C/S		 OD   C D E F G H Wt.(lb)
MCB-6D* 7.50 8.00 8.50 2.82 7.75 5.00 3.00 1.40 30
[190.5] [203.2] x 1/8 [215.9] [71.5] [196.9] [127.0] [76.2] [35.4]
MCB-8 8.00 8.15 8.63 2.63 7.69 5.00 3.00 1.30 30
[203.2] [207.0] x 1/8 [219.1] [66.7] [195.3] [127.0] [76.2] [32.9]
MCB-12 12.25 12.50 13.25 2.88 6.62 5.00 2.60 1.42 50
[311.2] [317.5] x 3/16 [336.6] [73.0] [168.3] [127.0] [66.0] [36.1]
MCB-16D* 18.00 18.31 19.63 4.00 10.97 8.38 3.00 1.75 92
[457.2] [465.2] x 1/4 [498.6] [101.6] [278.6] [212.8] [76.2] [44.3]
MCB-20D* 21.75 22.12 23.00 3.94 9.25 6.5 3.00 1.75 90
[552.5] [561.9] x 1/4 [584.2] [100.1] [235.0] [165.1] [76.2] [44.3]
MCB-24 24.00 25.06 26.00 3.94 9.25 6.25 2.75 1.75 150
[609.6] [636.5] x 1/4 [660.4] [100.1] [235.0] [158.8] [69.9] [44.3]
MCB-32 32.50 32.81 33.75 5.25 8.50 6.50 2.00 2.38 175
[825.5] [833.5] x 1/4 [827.3] [133.4] [215.9] [165.1] [50.8] [60.3]
MCB-35 35.50 35.81 36.75 5.25 10.00 7.00 3.00 2.38 310
[901.7] [909.6] x 1/4 [933.5] [133.4] [254.0] [177.8] [76.2] [60.3]

Fitting Types

*The "D" means the baffle is oversized to fit a diffusion pump.
