GNB Corporation Vacuum Multi-Coolant Baffles

Diffuser "Louver Design"

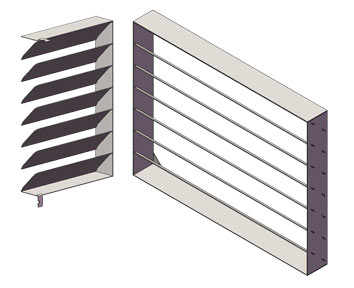

Square Diffuser

Rectangular Diffusers

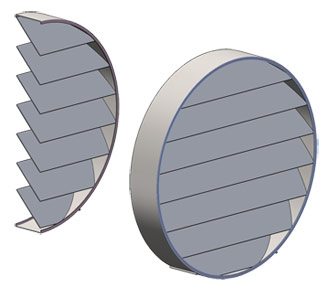

Circular Baffle, Louver Style Cross Section

Circular Diffusers

Diffusers are a type of baffle that direct the flow of air (or other gasses) into or out of a vacuum chamber. They are similar to heatshields, except they have no cooling capabilities. They come in many shapes and sizes and are custom designed for a specific process.
